YH30 4WD Telescopic Wheel Loader

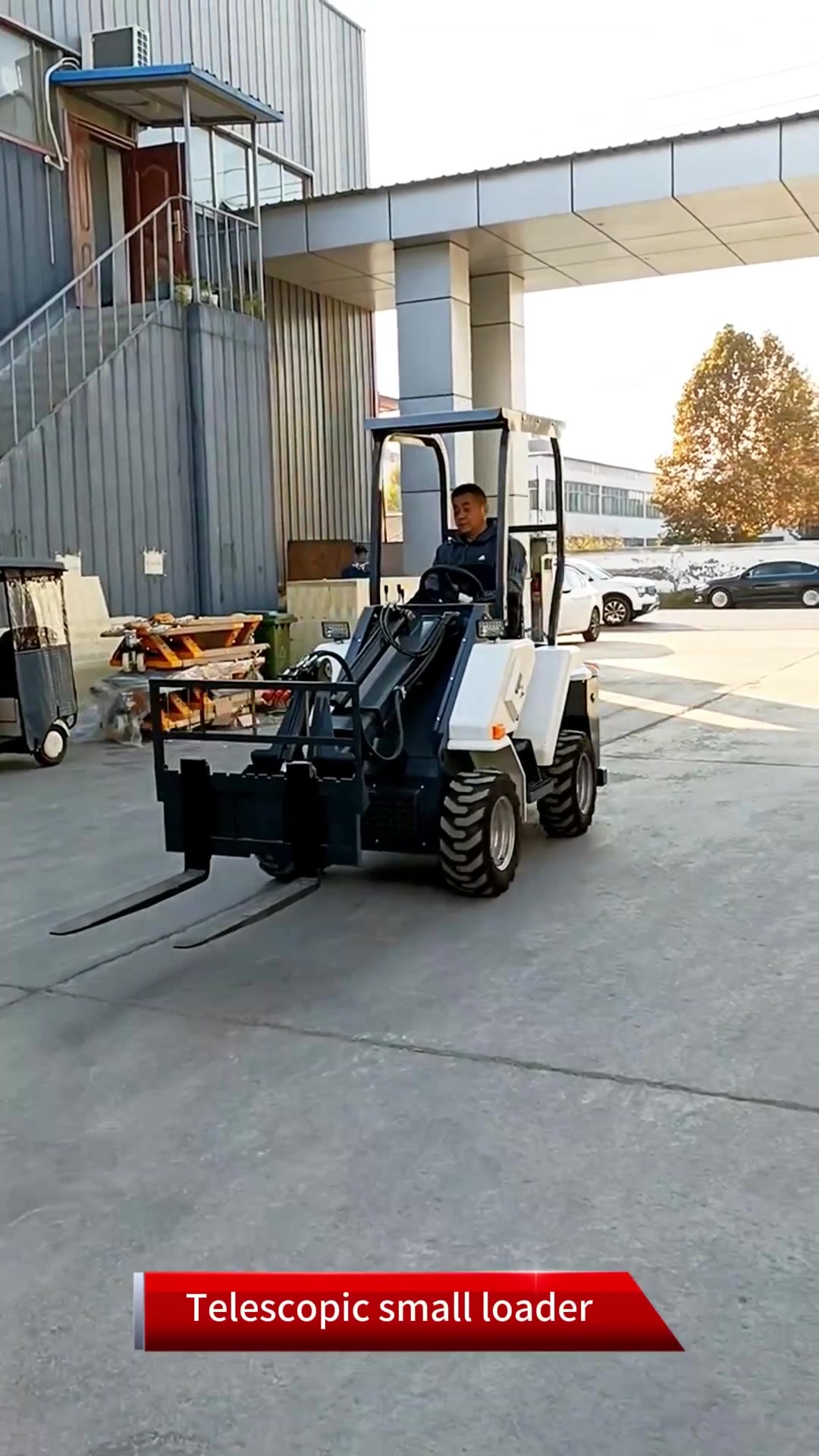

Compact telescopic loader with 570mm extendable boom for greater reach.
4-wheel drive and articulated steering ensure excellent maneuverability.
800kg boom lifting capacity with precise hydraulic control system.
Compatible with buckets, forks, grapples and various attachments.

Classification :

Display Video

Features and Benefits

Telescopic Arm for Extended Reach

Telescopic Arm for Extended Reach

The 570mm telescopic boom significantly extends the working range, allowing operators to load, lift, and place materials more efficiently. With a maximum lifting height of 3350mm, it is ideal for reaching elevated or difficult-to-access areas.
All-Terrain 4WD Performance

All-Terrain 4WD Performance

The four-wheel drive system combined with durable off-road tires delivers excellent traction, stability, and climbing capability on muddy, uneven, and challenging terrain.
  • PRODUCT OVERVIEW
  • Technical Specifications

    Dimensions & Performance
    Maximum Lifting Height 3350 mm
    Maximum Pin Height 2680 mm
    Main Boom Dump Height (45°) 2000 mm
    Main Boom Reach 1240 mm
    Main Boom Capacity 800 kg
    Telescopic Boom Length 570 mm
    Telescopic Boom Dump Height (45°) 2300 mm
    Telescopic Boom Capacity 600 kg
    Bucket Capacity 0.3 m³
    Rated Load Capacity 500 kg
    Maximum Speed 9 km/h
    Gradeability 30%
    Turning Radius 2600 mm
    Operating Weight 2000 kg
    Net Weight 1450 kg
    Machine Dimensions
    Overall Length 3380 mm
    Overall Width 1240 mm
    Overall Height 2250 mm
    Wheelbase 1360 mm
    Ground Clearance 190 mm
    Tire Size 23×8.5-12
    Drive Type 4 Wheel Drive
    Steering Type Hydraulic Articulated Steering
    Engine & Hydraulic System
    Standard Engine RATO 739
    Engine Power 26 HP / 3600 rpm
    Fuel Tank Capacity 30 L
    Hydraulic Oil Tank Capacity 30 L
    System Pressure 25 MPa
    Hydraulic Flow 33 L/min
    Engine Options RATO 739 / KOOP 292 / Briggs & Stratton 3864 / Honda GX690 / Kubota D1105
    Packing Information
    Export Packing Size 3100 × 1350 × 1770 mm
    Packing Type Fumigation-Free Wooden Crate

    Packing And Delivery

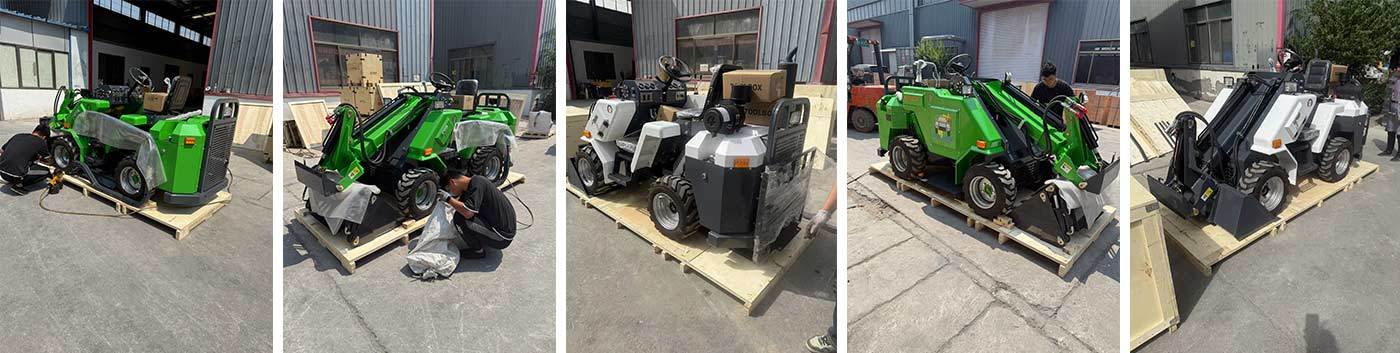

    YH30 four wheel drive telescopic wheel loader packed in fumigation-free wooden crate for export shipment

    Product Description

    The YH30 Four Wheel Drive Telescopic Wheel Loader is a versatile material handling machine designed for construction, agriculture, landscaping, municipal maintenance, and industrial applications. Featuring a 570mm telescopic boom, the loader offers extended working reach, making loading, lifting, and material placement faster and more efficient in confined or hard-to-access areas.

    Its hydraulic articulated steering system provides outstanding maneuverability, allowing the machine to operate smoothly in narrow passages and crowded job sites. Combined with a reliable four-wheel drive system, the YH30 delivers excellent traction, stability, and climbing performance on uneven terrain and demanding working conditions.

    Powered by a dependable engine and equipped with a precision hydraulic control system, the loader offers smooth operation, accurate attachment control, and reduced operator fatigue. The machine provides a maximum lifting height of 3350mm and up to 800kg lifting capacity, enabling efficient handling of pallets, aggregates, soil, feed, and construction materials.

    The YH30 can be equipped with a variety of attachments including buckets, pallet forks, grapples, and breakers, making it a highly adaptable solution for customers seeking one machine capable of performing multiple tasks with maximum efficiency.

RELIABLE AFTER-SALES SERVICE

RELIABLE AFTER-SALES SERVICE

Every YHMG machine is backed by warranty coverage, technical support, and spare parts assistance to ensure reliable performance throughout its service life.

STANDARD WARRANTY

12 months or 1,000 operating hours

Covers engine, hydraulic system, undercarriage & major components

FAST SERVICE & REPAIRS

Modular design for quick maintenance and reduced downtime

Remote technical support and troubleshooting assistance

GLOBAL SUPPORT

24/7 support via WhatsApp, Email, or Phone

Worldwide spare parts supply for fast replacement

Certified for Global Markets

YHMG machines are manufactured to meet international quality and safety standards. CE, EPA and Euro 5 certified models are available for different market requirements.

CE certification and international quality certificates for excavators, skid steer loaders, road rollers and dumpers

Manufacturing Excellence

From welding and assembly to final inspection, every machine is manufactured under strict quality control standards to ensure reliable performance and long-term durability.

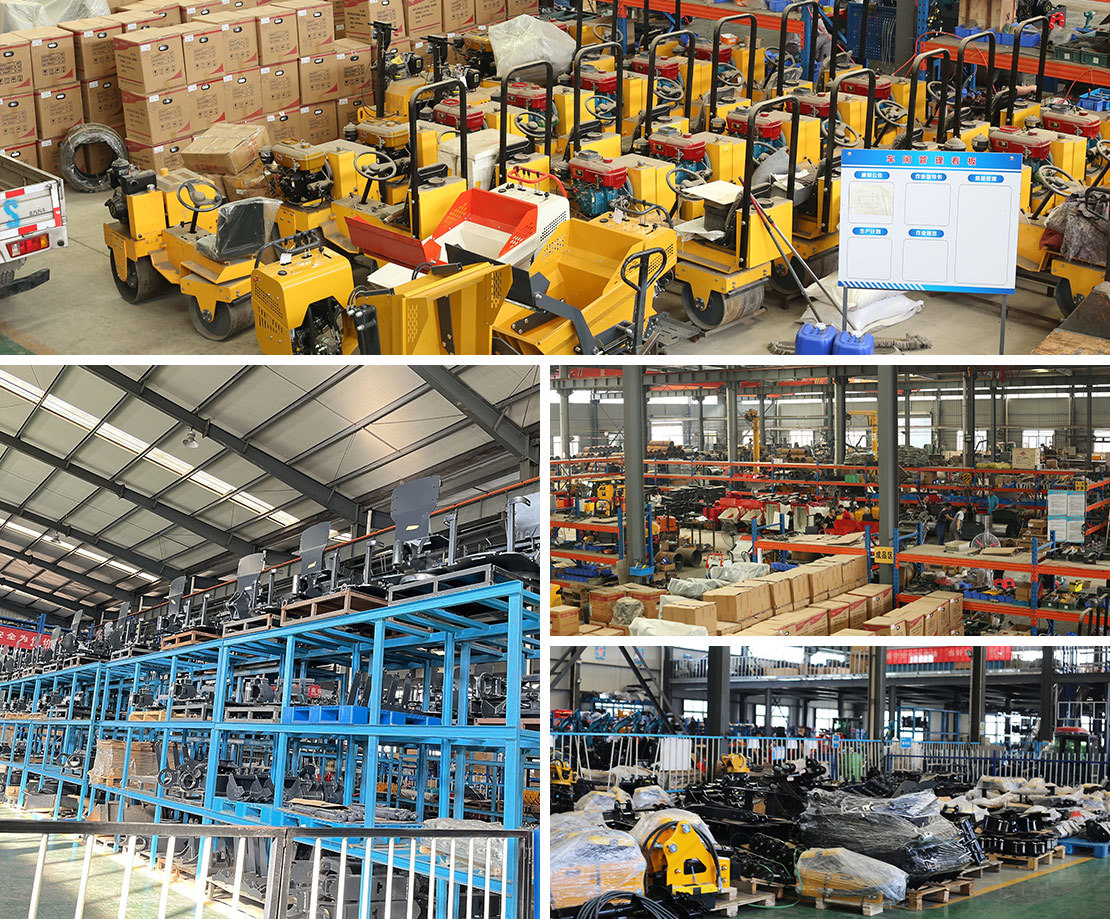

Warehouse Storage of Wheel Skid Steer Loader Construction Machinery
