YH-JS1400T 4 Ton Front Steel Rear Rubber Hydraulic Road Roller
Full hydraulic drive with stepless speed control for smooth operation.
50kN vibration force delivers efficient asphalt compaction performance.
Ideal for asphalt paving, municipal roads, highways, and infrastructure projects.
Classification :
Display Video
Features and Benefits
Front Steel Drum & Rear Rubber Tire Combination
Full Hydraulic Drive System
- PRODUCT OVERVIEW
-
Technical Specifications
Travel System Travel Speed 0–12 km/h Steering Radius 3600 mm Gradeability 30% Drive System Full Hydraulic Dual-Wheel Drive Steering System Hydraulic Steering Parking Brake Hydraulic Self-locking Compaction Performance Static Linear Load (Front/Rear) 135 / 97 N/cm Nominal Amplitude 0.5 mm Vibration Frequency 70 Hz Centrifugal Force 50 kN Vibration Mode Hydraulic Front Drum Vibration Working System Spraying System Electronically Controlled Pressure Atomization Water/Emulsion Spray Water Tank Capacity 180 L Water Tank Material Rotational Molded Polyethylene Hydraulic Oil Tank Capacity 40 L + 56 L Rear Tire Specification 10.5/80-16 × 4 Engine Standard Engine Changchai 490 Diesel Engine Engine Type Vertical Four-cylinder Water-cooled Diesel Rated Power 49 HP / 2400 rpm Fuel Tank Capacity 36 L Optional Engines Changchai 490 / Yanmar 386 (China III, China IV, EPA & Euro 5 Available) Dimensions & Weight Front Drum Width 1400 mm Front Drum Diameter 810 mm Overall Dimensions (L×W×H) 3000 × 1560 × 2000 mm Packing Dimensions 3000 × 1560 × 2000 mm Net Weight 3424 kg Operating Weight 3650 kg Product Gallery

Product Description

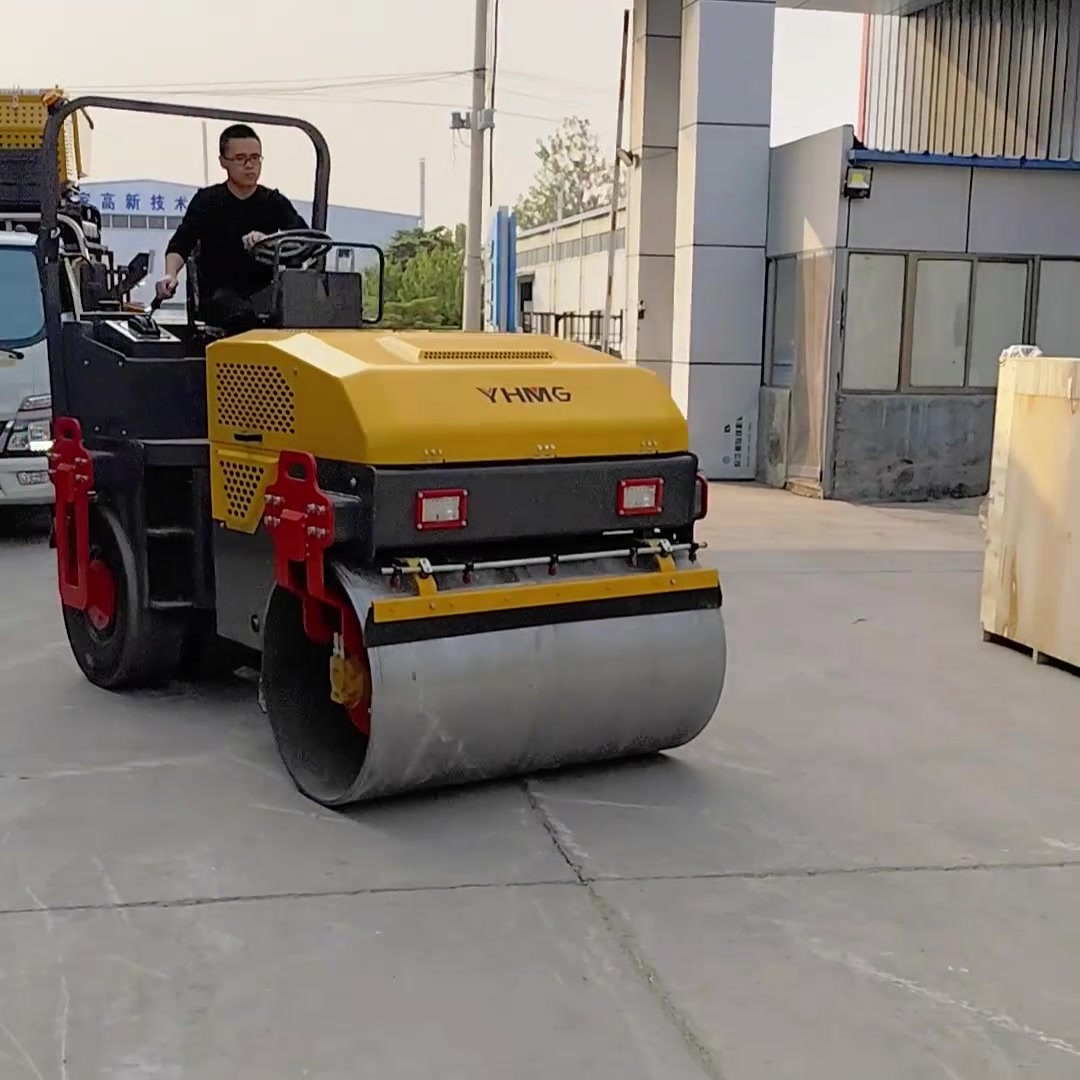

The YH-JS1400T 4 Ton Front Steel Rear Rubber Hydraulic Road Roller is specifically designed for asphalt compaction and road paving applications. Combining a vibrating front steel drum with four rear rubber tires, the machine delivers excellent compaction efficiency while producing smooth, high-quality pavement finishes for municipal roads, highways, industrial parks, and infrastructure projects.
Equipped with an international-brand variable displacement piston pump, dual hydraulic drive motors, and a full hydraulic transmission system, the YH-JS1400T provides stepless speed control, smooth maneuverability, and reliable operating performance. The hydraulic front drum generates a centrifugal force of 50kN at a vibration frequency of 70Hz, ensuring efficient compaction on asphalt surfaces.
The roller also features an electronically controlled pressure atomization spraying system with dual water tanks for uniform water or emulsion distribution, reducing asphalt adhesion and improving paving quality. Combined with hydraulic steering, hydraulic self-locking parking brake, and durable NSK bearings, the YH-JS1400T offers dependable performance, enhanced safety, and long service life for professional road construction contractors.
RELIABLE AFTER-SALES SERVICE
Every YHMG machine is backed by warranty coverage, technical support, and spare parts assistance to ensure reliable performance throughout its service life.
STANDARD WARRANTY
12 months or 1,000 operating hours
Covers engine, hydraulic system, undercarriage & major components
FAST SERVICE & REPAIRS
Modular design for quick maintenance and reduced downtime
Remote technical support and troubleshooting assistance
GLOBAL SUPPORT
24/7 support via WhatsApp, Email, or Phone
Worldwide spare parts supply for fast replacement
Certified for Global Markets
YHMG machines are manufactured to meet international quality and safety standards. CE, EPA and Euro 5 certified models are available for different market requirements.

Manufacturing Excellence
From welding and assembly to final inspection, every machine is manufactured under strict quality control standards to ensure reliable performance and long-term durability.

Become Our Distributor

Partner with YHMG to grow your machinery business with factory-direct products and professional support.
- ✔ Exclusive territory opportunities
- ✔ Competitive dealer pricing
- ✔ OEM and private label services
- ✔ Fast spare parts and after-sales support
- ✔ Export experience in global markets
