YH-JS4000 4 Ton Single Drum Vibratory Road Roller
Hydraulic vibration with rear dual tire drive for superior traction.
49HP four-cylinder diesel engine delivers reliable performance.
Ideal for road construction, municipal and infrastructure projects.
Classification :
Display Video
Features and Benefits
Powerful Hydraulic Vibratory Single Drum
Articulated Steering for Flexible Maneuverability
- PRODUCT OVERVIEW
-
Technical Specifications

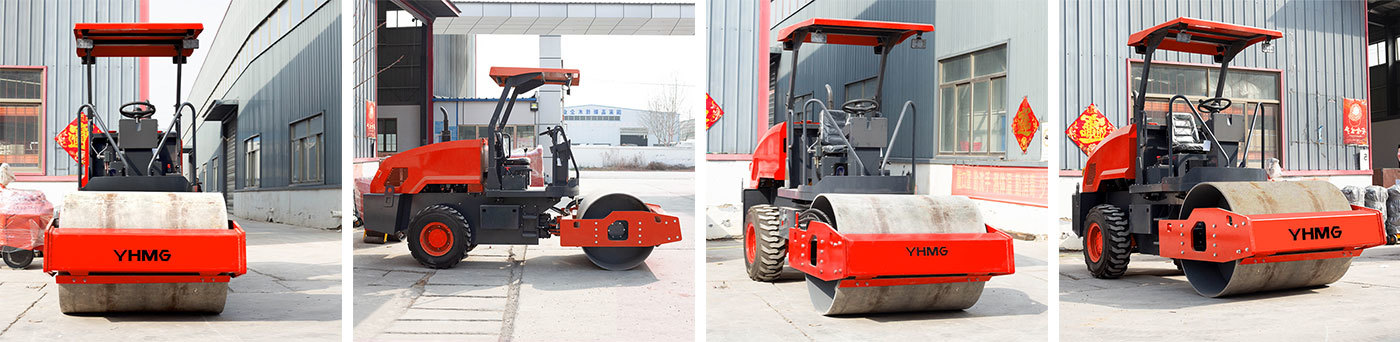

Performance Operating Weight 4000 kg Net Weight 3900 kg Maximum Travel Speed 8 km/h Gradeability 30% Minimum Turning Radius 4900 mm Compaction System Drum Type Single Steel Drum Static Linear Load 180 N/cm Centrifugal Force 60 kN Vibration Frequency 60 Hz Nominal Amplitude 0.5 mm Vibration Type Hydraulic Vibration Hydraulic & Drive System Drive Type Rear Wheel Drive Steering Type Hydraulic Steering Hydraulic Oil Tank Capacity 48 L Engine Standard Engine Changchai 490 Engine Type 4-Cylinder Water-cooled Diesel Rated Power 49 HP / 2400 rpm Fuel Tank Capacity 60 L Optional Engines Available Engines Changchai 490 / Yanmar 386 Emission Standards China III / China IV / EPA / Euro 5 Dimensions Overall Dimensions (L×W×H) 4260 × 1480 × 2300 mm Overall Length 4260 mm Overall Width 1480 mm Overall Height 2300 mm Wheelbase 2350 mm Front Drum Width 1280 mm Front Drum Diameter 1000 mm Product Gallery

Product Description

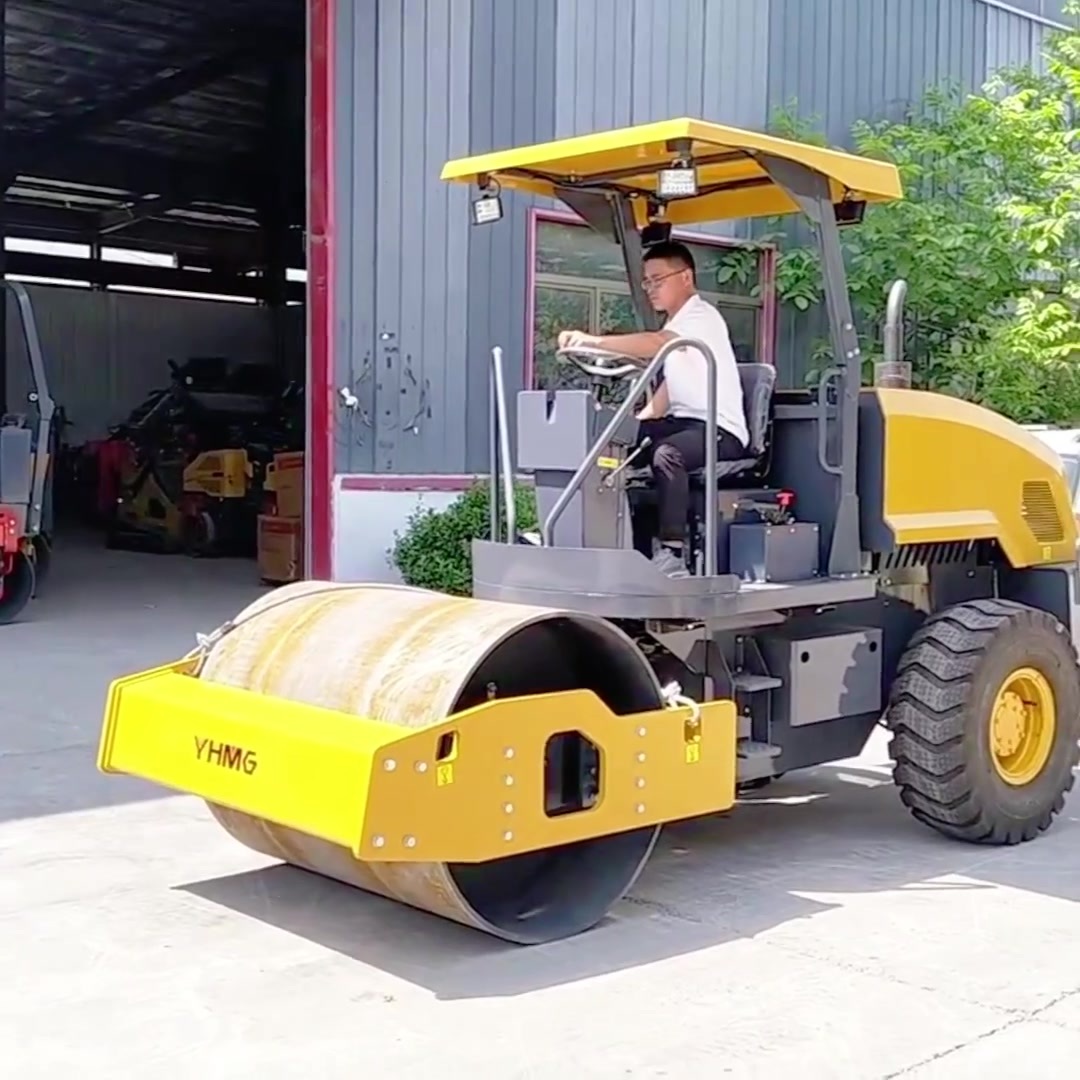

The YH-JS4000 4 Ton Single Drum Vibratory Road Roller is engineered for efficient compaction of asphalt, gravel, crushed stone, and soil in road construction, municipal engineering, industrial parks, and infrastructure projects. Combining a heavy-duty front steel drum with rear dual rubber tires, the machine delivers outstanding compaction performance together with excellent driving stability.
Equipped with a hydraulic vibratory drum, rear-wheel drive system, and hydraulic articulated steering, the YH-JS4000 provides smooth operation, powerful traction, and a tight turning radius for efficient work in both open and confined job sites. The hydraulic power-shift transmission and torque converter ensure comfortable operation while protecting key drivetrain components for long service life.
Powered by a reliable 49 HP four-cylinder water-cooled diesel engine, the roller delivers dependable performance, excellent fuel economy, and reliable cold-start capability. Optional engines meeting EPA, Euro 5, and other emission standards are available for different international markets. An optional enclosed cab or sun canopy further enhances operator comfort, making the YH-JS4000 an ideal compaction solution for professional contractors and equipment rental fleets.
RELIABLE AFTER-SALES SERVICE
Every YHMG machine is backed by warranty coverage, technical support, and spare parts assistance to ensure reliable performance throughout its service life.
STANDARD WARRANTY
12 months or 1,000 operating hours
Covers engine, hydraulic system, undercarriage & major components
FAST SERVICE & REPAIRS
Modular design for quick maintenance and reduced downtime
Remote technical support and troubleshooting assistance
GLOBAL SUPPORT
24/7 support via WhatsApp, Email, or Phone
Worldwide spare parts supply for fast replacement
Certified for Global Markets
YHMG machines are manufactured to meet international quality and safety standards. CE, EPA and Euro 5 certified models are available for different market requirements.

Manufacturing Excellence
From welding and assembly to final inspection, every machine is manufactured under strict quality control standards to ensure reliable performance and long-term durability.

Become Our Distributor

Partner with YHMG to grow your machinery business with factory-direct products and professional support.
- ✔ Exclusive territory opportunities
- ✔ Competitive dealer pricing
- ✔ OEM and private label services
- ✔ Fast spare parts and after-sales support
- ✔ Export experience in global markets
