YH430 430KG Mini Skid Steer Loader
Available in wheel and track versions for different terrains.
Quick attach system supports multiple hydraulic attachments.
EPA and Euro 5 engine options for global markets.
Classification :
Display Video
Features and Benefits
Compact Design for Tight Spaces
Stable Dual-Arm Lifting Structure
- PRODUCT OVERVIEW
-
Technical Specifications

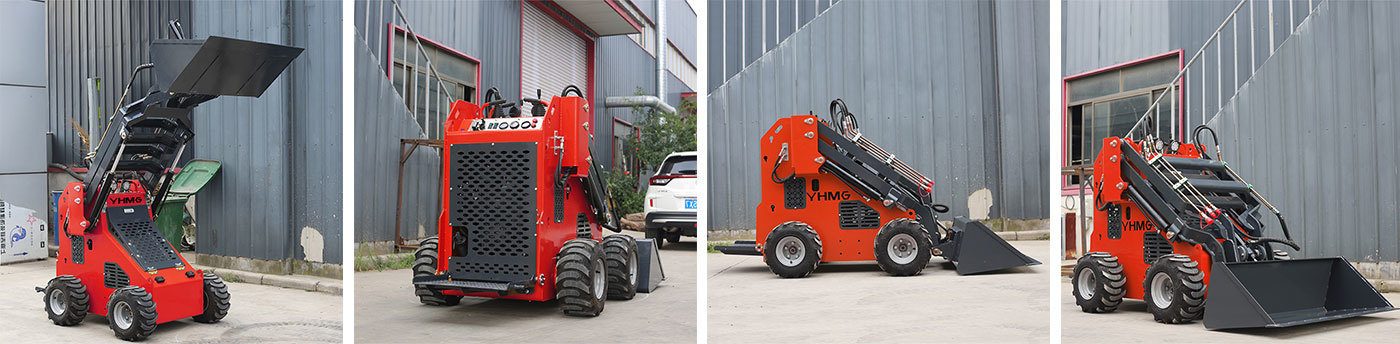

Model YH430 Dimensions Overall Length (with Bucket) 2600 mm Overall Width 1200 mm Overall Height 1350 mm Wheelbase 860 mm Ground Clearance 100 mm Bucket Width 1190 mm Maximum Working Height 2300 mm Maximum Pin Height 2100 mm Maximum Dumping Height 1450 / 1900 mm Performance Rated Operating Capacity 430 kg Bucket Capacity 0.17 m³ Maximum Breakout Force 550 kg Travel Speed 0-7 km/h Climbing Ability 30° Operating Weight 1430 kg Machine Weight 950 kg (Wheel) / 1030 kg (Track) Hydraulic System System Pressure 25 MPa Standard Hydraulic Flow 33 L/min Travel Pump Flow 75 L/min Charge Pump Flow 10 L/min Working System Flow 44 L/min Engine Options Standard Engine RATO 739 Power Output 26 HP / 3600 rpm Fuel Tank Capacity 30 L Hydraulic Oil Tank Capacity 20 L Optional Engines RATO 739 / KOOP 292 / Briggs & Stratton 3864 / Honda GX690 Tires & Tracks Tire Size 18×8.5-8 Track Size 180/60/46 Product Views

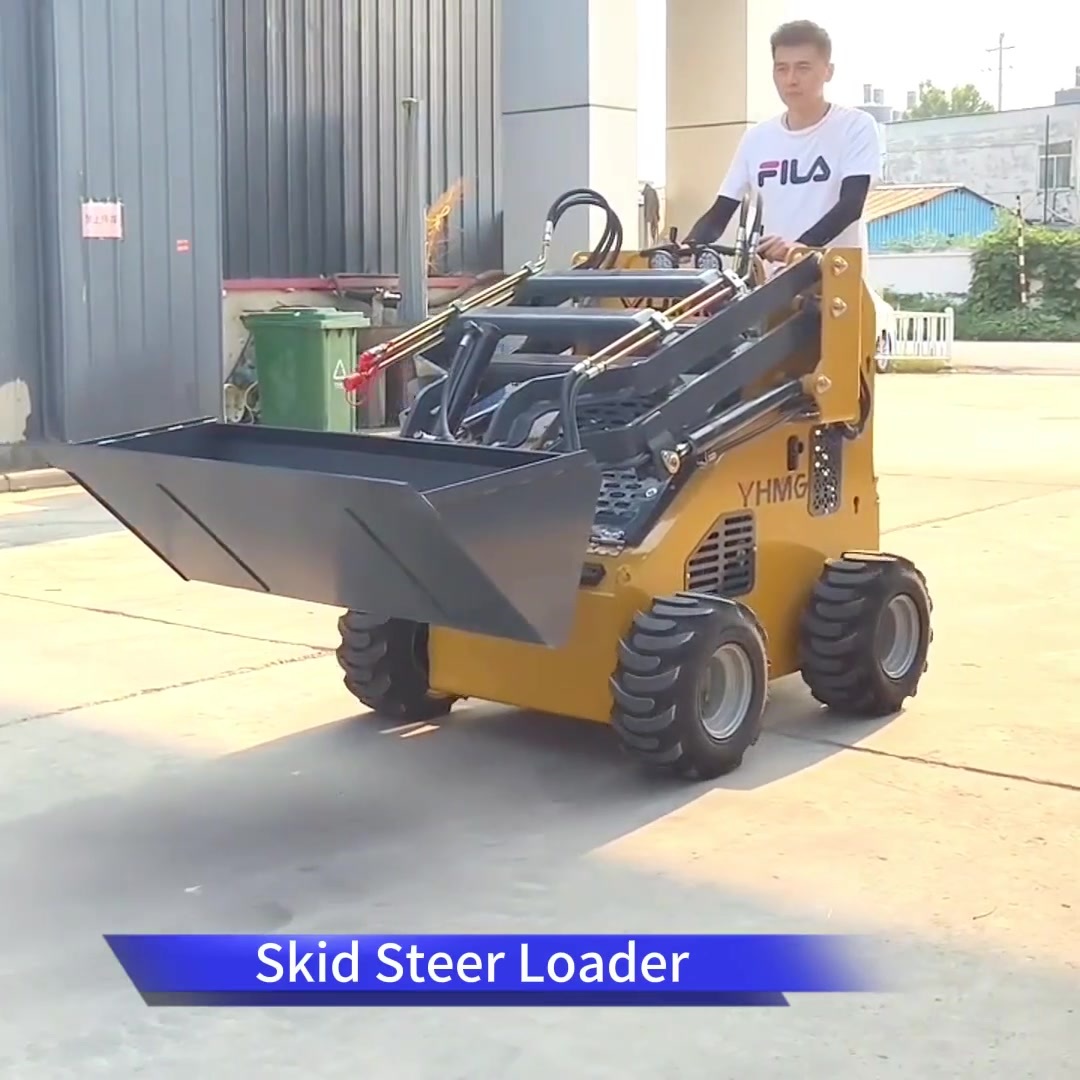

Product Description
The YH430 Mini Skid Steer Loader is a compact and versatile machine designed for construction, landscaping, agriculture, municipal maintenance, and property management applications. With a rated operating capacity of 430KG, the loader provides excellent material handling performance while maintaining exceptional maneuverability in confined working environments.
Available in both wheel and track configurations, the YH430 can adapt to various ground conditions. The tracked model delivers superior traction and stability on muddy, uneven, and soft terrain, while the wheeled version offers efficient mobility on hard surfaces and paved job sites.
The machine features a dual-arm lifting structure and an automatic bucket leveling system, ensuring smooth lifting performance and improved operational safety. Its compact dimensions and zero-radius steering capability allow operators to work efficiently in narrow spaces where larger equipment cannot access.
Equipped with a quick attachment system and high-performance hydraulic circuit, the YH430 supports a wide range of hydraulic attachments including buckets, augers, trenchers, sweepers, forks, and grapples. Multiple engine options meeting EPA and Euro 5 emission standards are available to satisfy the requirements of different international markets.
RELIABLE AFTER-SALES SERVICE
Every YHMG machine is backed by warranty coverage, technical support, and spare parts assistance to ensure reliable performance throughout its service life.
STANDARD WARRANTY
12 months or 1,000 operating hours
Covers engine, hydraulic system, undercarriage & major components
FAST SERVICE & REPAIRS
Modular design for quick maintenance and reduced downtime
Remote technical support and troubleshooting assistance
GLOBAL SUPPORT
24/7 support via WhatsApp, Email, or Phone
Worldwide spare parts supply for fast replacement
Certified for Global Markets
YHMG machines are manufactured to meet international quality and safety standards. CE, EPA and Euro 5 certified models are available for different market requirements.

Manufacturing Excellence
From welding and assembly to final inspection, every machine is manufactured under strict quality control standards to ensure reliable performance and long-term durability.

Become Our Distributor

Partner with YHMG to grow your machinery business with factory-direct products and professional support.
- ✔ Exclusive territory opportunities
- ✔ Competitive dealer pricing
- ✔ OEM and private label services
- ✔ Fast spare parts and after-sales support
- ✔ Export experience in global markets
